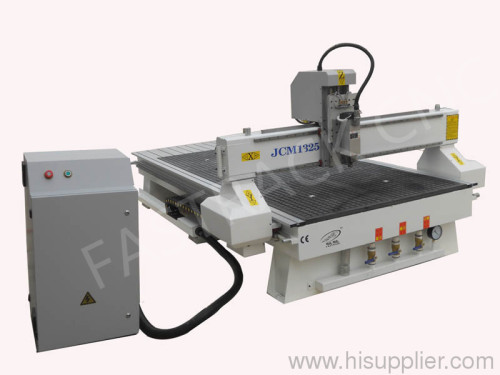

FASTRACK CNC Router JCM1325 JCM1325 manufacturer from China JINAN FASTRACK CNC EQUIPMENT CO.,LTD.

Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)

Product Detail

Model No.: JCM1325

Production Capacity: 120 Sets/Month

Delivery Date: 20 Lead time

Means of Transport: Ocean

Packing: Standard Plywood Case

Working area: 1300*2500mm

FASTRACK CNC Router JCM1325
1. Solid steel frame
2. Air cooling spindle
3. DSP control
4. Stepper driving motors

FASTRACK CNC Router JCM1325

Working area(mm)	X	1300 mm
	Y	2500 mm
	Z	200 mm
Accuracy	Postion accuracy	0.03
Accuracy	Reposition accuracy	0.02
Structure	Table	Vacuum Adsorption
Structure	X/Y/Z	X/Y:Rack and pinion Z:Ball screw rod
Speed	Max air speed	45000mm.min
Speed	Max working speed	20000mm/min
Spindle	Power	4.5kw
	Rotating Speed	0---18000 rpm
	Cooling Type	Air-cooling
Running mode		Stepper Motors
Working voltage		380V/50Hz
Working command		G code ; .u00 ; .mmg ; *.plt .
Operating System		DSP (USB Interface)
Net Weight		1000 kg
Gross Weight		1200 kg
